CR116 Design and Construction of Ang Mo Kio Interchange Station and Tunnels
TIXOBENT for CR116 Ang Mo Kio Interchange Station: Diaphragm Walls in Singapore
Ang Mo Kio, Singapore

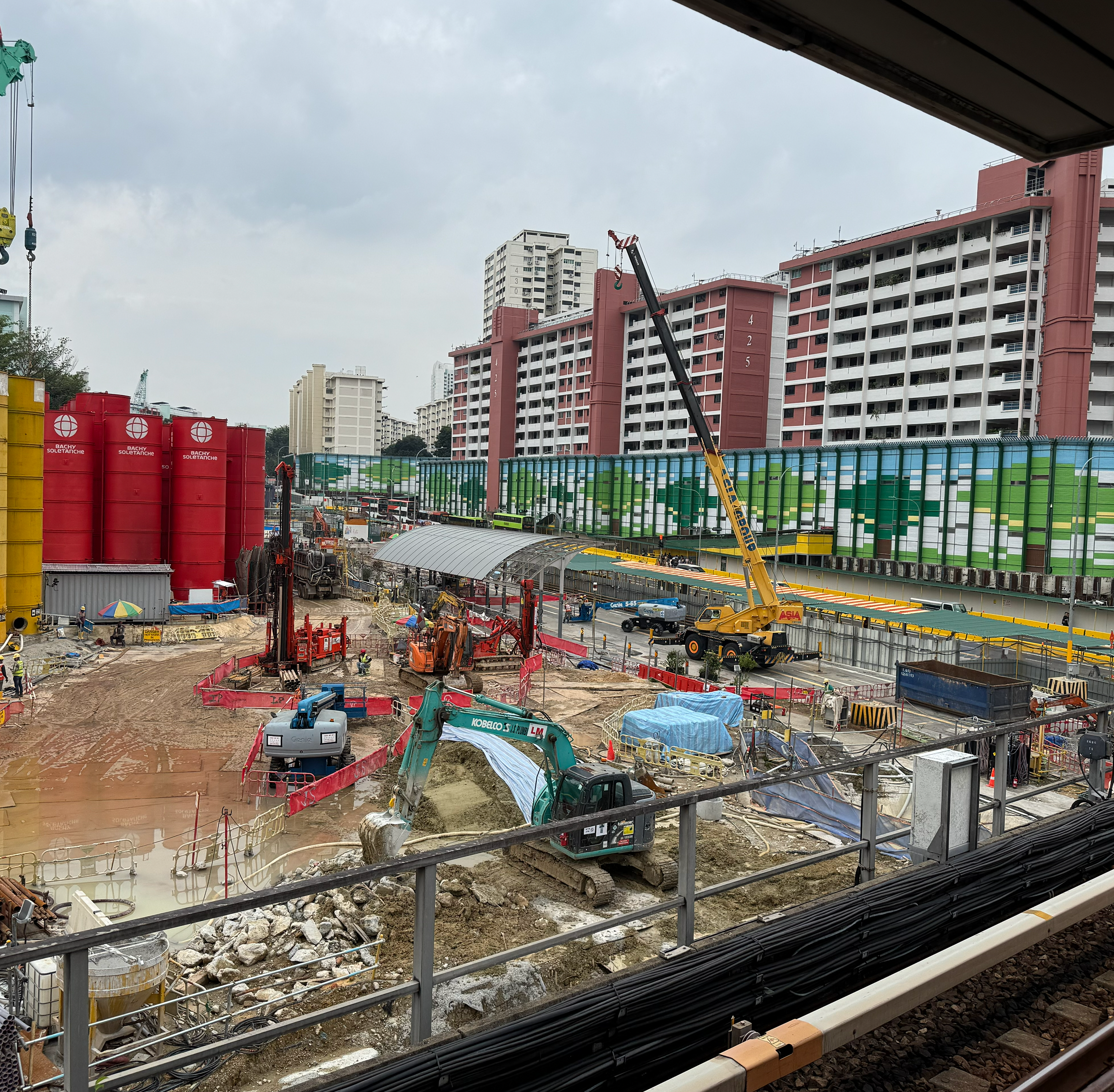

Siam Minerals supplied drilling fluid for the CR116 Ang Mo Kio Interchange Station and Tunnels project in Singapore. The diaphragm wall works comprise approximately 400 panels, each around 6 m long and 1.0–1.2 m wide, with excavation depths reaching 55 m. The estimated concreting volume is 136,950 m³.
The site’s dense urban setting, Old Alluvium and GIII–GV ground formations, and high groundwater levels in some sections place significant demands on excavation support. Siam Minerals supplied TIXOBENT® SF4 bentonite to help maintain slurry performance and trench stability during diaphragm wall excavation.
As a bentonite supplier in Singapore, Siam Minerals supports local underground construction projects with materials suited to challenging ground conditions. Explore our drilling fluids for diaphragm walls.
Project Responsibilities
Diaphragm Wall Panels: 400 panels
Panel Length: 6 m
Panel Width: 1.0–1.2 m
Excavation Depth: up to 55 m
Concreting Volume: 136,950 m³
Project Challenges
Construction within a dense urban area
)
Supplied Drilling Fluid Products
)
